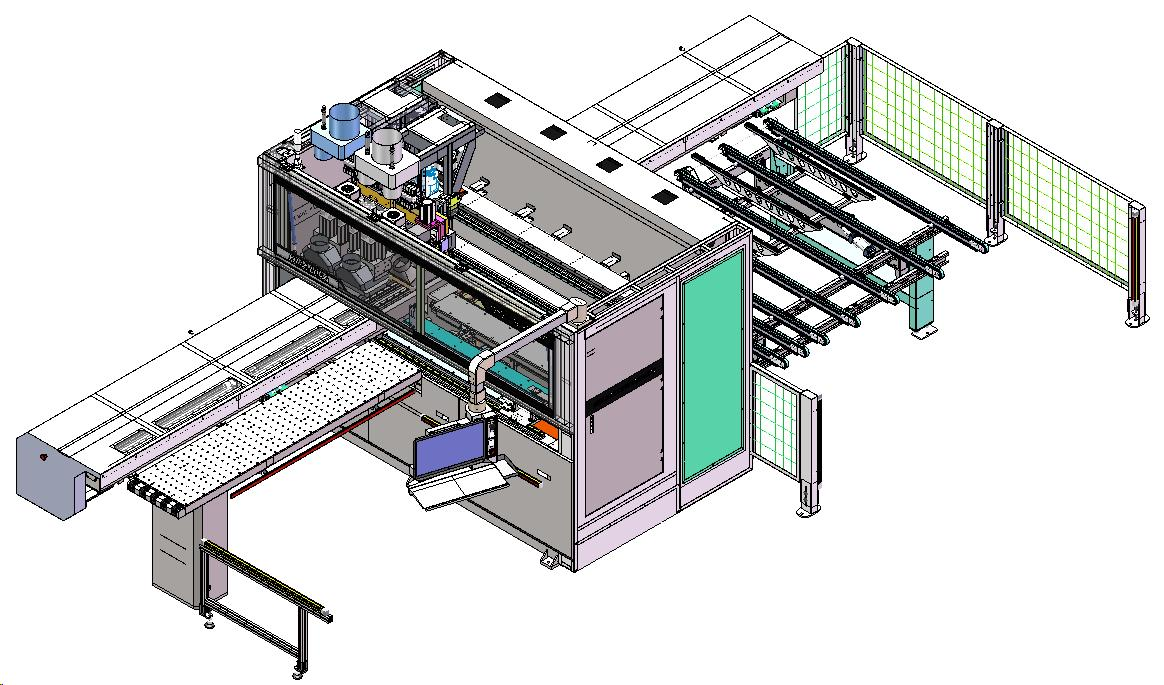

SKH-612GMSF
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nulla accumsan felis magna, vel feugiat velit aliquet id. Sed iaculis odio pharetra vulputate efficitur. Etiam felis odio, auctor eget vehicula id, condimentum eu nisl. Vestibulum ornare efficitur lorem nec convallis.
Model:
SKH-612GMSFMin. Width:
50mmMax. Width:
1200mmMax. Length:
250mmMin. Length:
2800mmPanel Thickness:
10mmPanel Thickness:
60mmX axis:
130m/minY axis:
85m/minZ axis:
30m/minU axis:
130m/minV axis:
80m/minWaxis:
30m/minA axis:
30m/minY2 axis:
85m/minZ2 axis:
30m/minTop drilling box:

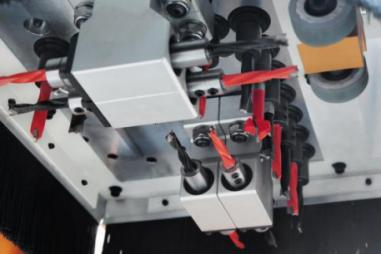

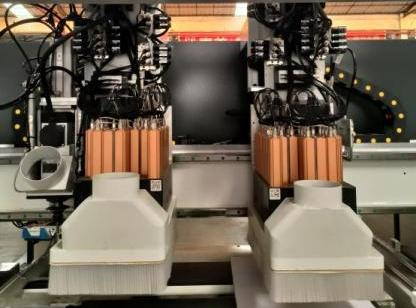

Vertical:16*2pcs Horizontal:8pcs*2Bottom drilling box:
Vertical：12pcsMotor power:
2.2kw*3Motor speed:
4500rpmQuantity:
Top:1 pc Bottom:1pcSpindle power:
3.5kwTool holder diameter:
1/2”Spindle speed:
18000rmpHeight of working table:
960mmTotal Power:
22.22KWWorking air pressure:
0.7-0.8MpaDate:
