Key Details
- Round-type tool magazine
- Machine size：4366*3340*2901mm
- Working area：2800*1300mm
Taiwan Syntec Control System
- Advanced Syntec Architecture: Utilizes the highly regarded Taiwan Syntec platform, a global industry standard recognized for its rock-solid stability and precision processing.
- Intelligent, Responsive Interface: Features an intuitive user layout that makes programming and daily operations straightforward, delivering lightning-fast command execution.
- Global Support Network: Backed by an extensive after-sales service network with dedicated support points worldwide, ensuring reliable technical assistance wherever you operate.
High-Performance ATC Spindle
- Powerful 12kW ATC Spindle: Delivers exceptional industrial torque and high-speed processing at 24,000 RPM, effortlessly handling intensive production demands.
- Heavy-Duty Machining: Specifically engineered for aggressive deep cutting and heavy milling operations without loss of speed or precision.
- Flawless Surface Finishes: Provides a rigid and highly stable cutting performance, ensuring the surface and edges of your workpieces remain perfectly clean and smooth.
Round-Type Carousel Tool Magazine
- 12-Slot Capacity: Houses up to 12 individual tools in a dynamic carousel layout, keeping your full tooling suite readily accessible.
- Proximity-Optimized Tool Changes: Utilizes smart directional logic to change tools based on the shortest path, significantly cutting down non-cutting cycle times.
- Enhanced Milling Efficiency: Streamlines multi-tool routing and milling processes, maximizing your overall production output.

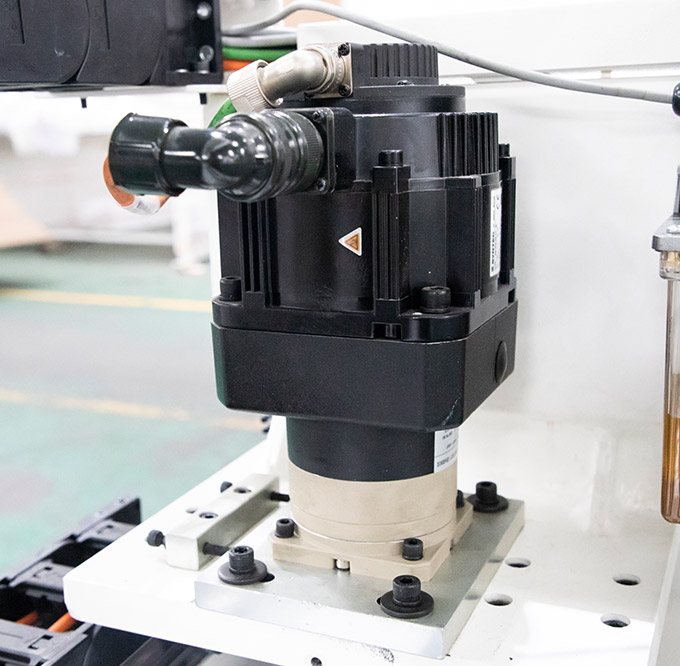

Taiwan Syntec Servo Motor & Driver with Imported Reducer
- Synchronized Syntec Drive System: Features a professionally engineered Syntec servo motor and driver pairing for seamless communication and highly responsive motion control.
- Premium Imported Reducer: Equipped with a high-precision imported reducer to optimize torque delivery, ensuring stable and reliable operation even under heavy mechanical loads.
- Flawless Resolution & Accuracy: Delivers exceptionally fine structural resolution, guaranteeing pinpoint cutting precision and strict adherence to strict manufacturing tolerances.
Imported Linear Guide Rail & Helical Rack
- Precision-Ground 30mm Linear Rails: Features heavy-duty, imported 30mm linear guide rails mounted securely to the gantry for maximum structural rigidity and tracking accuracy.
- Centralized Lubrication System: Engineered with a direct distribution network that delivers consistent oiling to all bearing blocks, drastically reducing friction, heat, and component wear.
- Perfectly Fluid Spindle Travel: Eliminates micro-vibrations and mechanical resistance, guaranteeing perfectly smooth and stable movement of the spindle motor assembly during high-speed cutting.

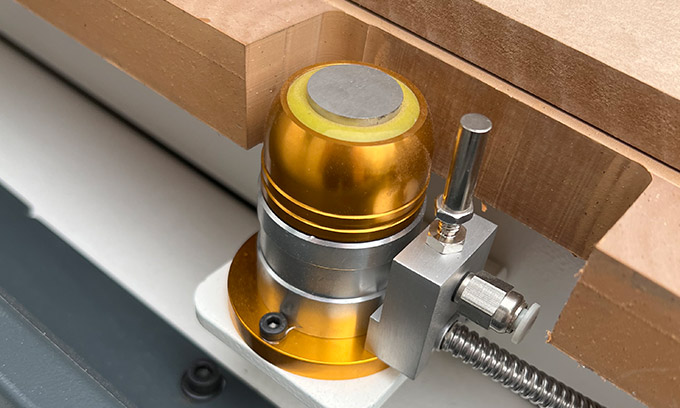

Automatic Tool Sensor
- Z-Axis Height Calibration: Automatically measures and calibrates the exact distance between the tool tip and the material or machine bed along the Z-axis.
- Precise Offset Detection: Instantly updates tool length parameters in the controller, eliminating manual measurement errors and saving valuable setup time.
- Bed Protection: Safeguards your workstation by preventing accidental over-travel and potential tool or machine bed gouging.

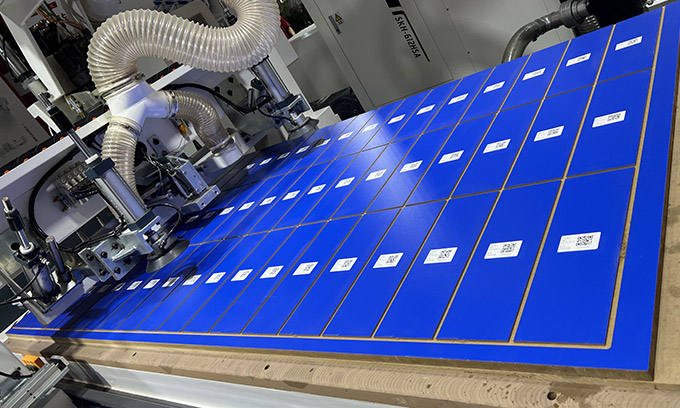

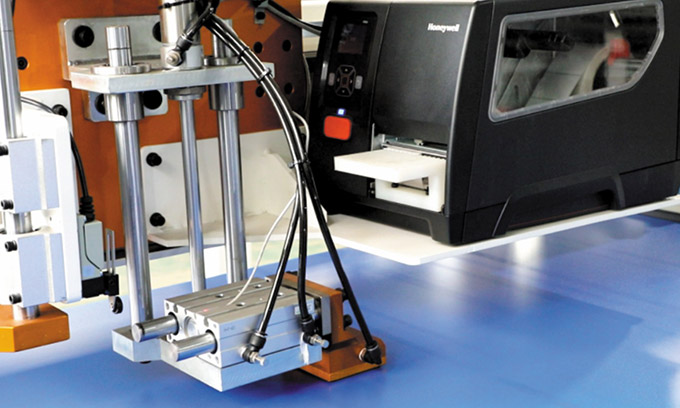

Automated Labeling System
- Pass-Through Continuous Processing: Seamlessly executes the labeling and cutting sequences through a dedicated pass-through workflow, eliminating staging delays.
- Uninterrupted Production: Labels are applied dynamically while the machine continues its cutting cycle, ensuring a smooth, non-stop material flow.
- Streamlined Part Tracking: Enhances sorting and downstream assembly by ensuring every cut piece is clearly and accurately marked before leaving the bed.

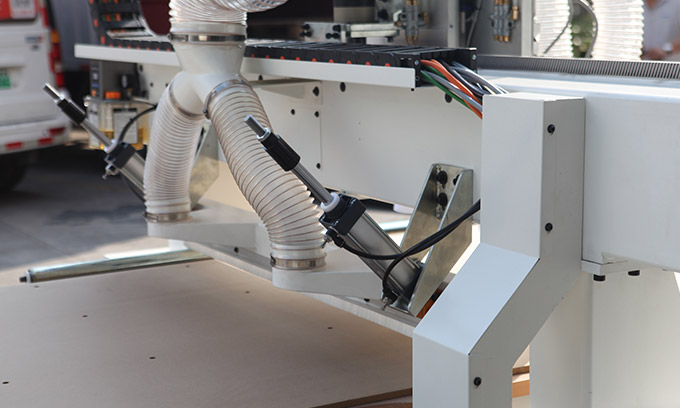

Automated Material Pusher Device
- Effortless Board Discharge: Automatically sweeps finished, cut boards off the main vacuum bed, reducing manual physical labor and speeding up the unloading cycle.
- Simultaneous Bed Cleaning: Often integrated with secondary dust collection or sweeping mechanisms to help clear debris from the table while moving the workpiece.
- Optimized Cycle Transitions: Clears the working area quickly so the next panel can be loaded immediately, significantly increasing overall daily panel yield.
Automated Suction Cup Loading Device
- Automated Board Retrieval: Features heavy-duty vacuum suction cups that automatically grip and lift panels directly from the loading lift table with precision.
- Optimized Labor Efficiency: Eliminates the need for manual, heavy lifting by personnel, drastically reducing labor costs and minimizing workplace fatigue or injury risks.
- Continuous Material Feed: Seamlessly transfers materials onto the cutting bed, establishing a highly efficient, automated workflow that keeps production running smoothly.

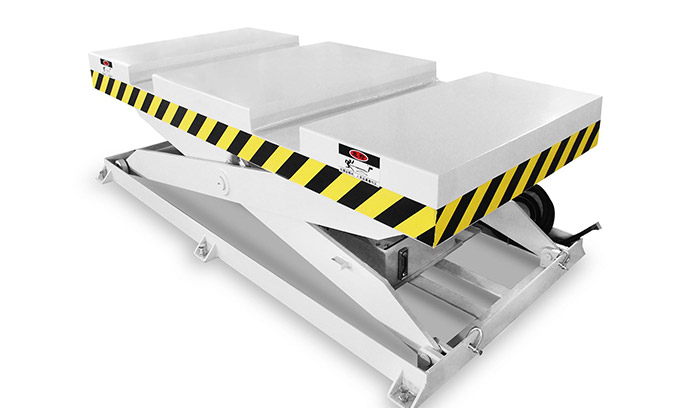

Heavy-Duty Automatic Lift Table
- High-Capacity Automated Loading: Safely stacks and lifts raw panels up to a maximum loading weight of 3,000 kg, built for high-volume industrial operations.
- Smart Height Adjustment: Automatically adjusts its height to keep the top panel perfectly aligned with the suction loading system for a seamless material intake.
- Robust Industrial Build: Engineered with a reinforced mechanical structure to easily handle heavy bundles of MDF, chipboard, or solid wood without flexing.

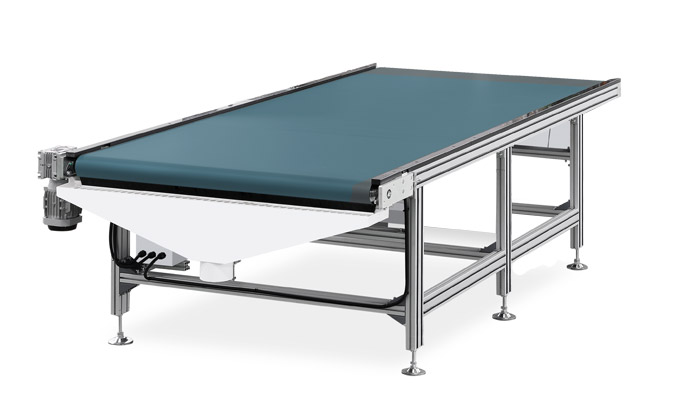

Automatic Conveyor Belt
- Finished Board Transport: Streamlines the unloading process by automatically transporting cut and finished panels away from the machining area.
- Smart Stop-and-Work Operation: Equipped with responsive sensors that pause the belt when a panel reaches the end and instantly resume movement once it is cleared.
- Continuous Workflow Integration: Eliminates manual offloading bottlenecks, bridging the gap between processing and stacking for an uninterrupted production line.

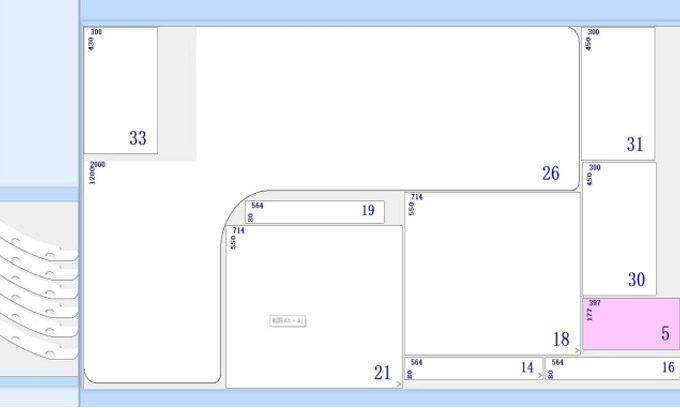

Integrated Cabinet Nesting Software
- Proprietary All-in-One Ecosystem: Features an in-house developed nesting software that seamlessly unifies order tracking, packaging workflows, and vital production stages within a single digital platform.
- End-to-End Design to Execution: Streamlines your complete operation by transforming custom designs into optimized panel maps, creating instant cutting lists, printing tracking labels, and generating precise client quotations automatically.
- Automated CNC Output: Instantly calculates necessary hardware requirements and outputs optimized CNC files for drilling and cutting, pushing data directly to production with zero manual translation errors.
Technical Specifications
| Model | SKG-812Z | Spindle power | 12kw |
| Working Area | 1300*2800mm | Drilling Unit | option |
| Vacuum area | 7 areas | Vacuum power | 7.5KW |
| Max. Moving Speed of X axis | 80m/min | Vacuum power air volume | 250m³/h |
| Max. Moving Speed of Y axis | 80m/min | Total power | 24.25kw |
| Max. Moving Speed of Z axis | 20m/min | Machine size | 9500*3390*2954mm |
| Spindle quantity | 1 | Gross weight | 3800kg |
FAQs
What are the main advantages of using a CNC nesting machine?
The primary benefits include:
- Material Efficiency: High plate utilization rates, which significantly saves raw materials.
- Versatility: The ability to handle various complex, special-shaped cutting patterns.
- Labor Savings: A reduced dependence on manual labor due to automation.
What types of materials can a CNC router process?
CNC routers are highly versatile and can process a wide range of materials, including:
- Wood & Composites: Teak wood, solid wood, MDF, and plywood.
- Plastics & Laminates: PVC, HPL, compact laminate, and acrylic.
- Metals: Aluminum.
What functions and operations can be performed with a CNC router?
A CNC router is designed to handle multiple tasks in a single setup, including cutting, drilling, grooving, engraving, milling, and routing.
Can the working size of the CNC nesting machine be customized?
Yes. Custom working sizes are supported to match your specific panel sizes and local production requirements.
What is the difference between the three nesting machine structures?
The structures vary based on their level of automation and workflow efficiency:
- Standard: Runs automatic pre-labeling, infeed, nesting, and outfeed in a single cycle to boost productivity and minimize errors.
- Autoloading/Unloading with Pre-Labeling: Maximizes efficiency by greatly reducing machine downtime while improving overall output.
- Auto Loading and Unloading: Handles loading and unloading in a single designated zone without interrupting the ongoing work cycle.
