Key Details
- Machine size: 3980*3340*2925mm
- Working area: 2800*1300mm
- Auto tool changing spindle

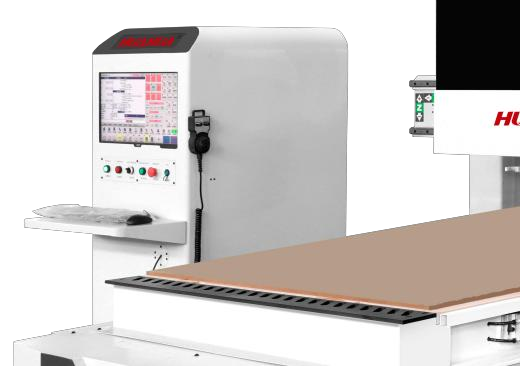

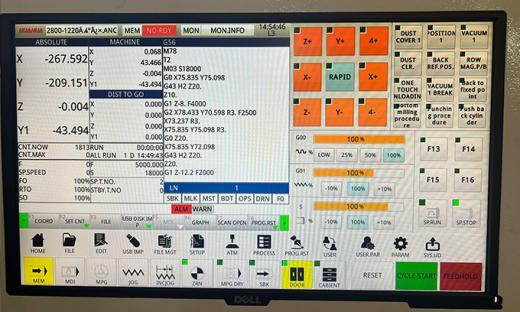

Color Screen Display
- Using color screen display with keyboard.
- Safe and reliable operation.
- Simple and friendly interface.
- Complete operating tips, concise and clear.
Baoyuan Control System
- Data can be loaded by CAD, quick and convenient operation.
- Match with user production design management software, no need to enter data independently.
- Intelligent processing list, load the file for one time and will continuously processing to end.

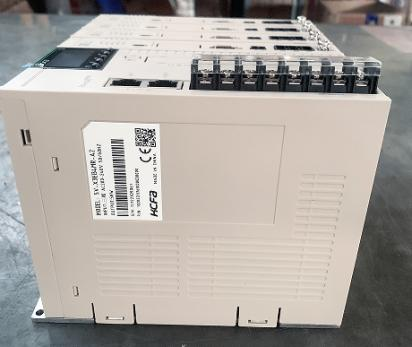

HCFA Driver
Powerful multi-axis CNC system.
- More comprehensive control and monitoring of machines.
- Quickly resolve machine failures and reduce failure rates.
- Real-time power outage data storage and remote machine diagnosis.

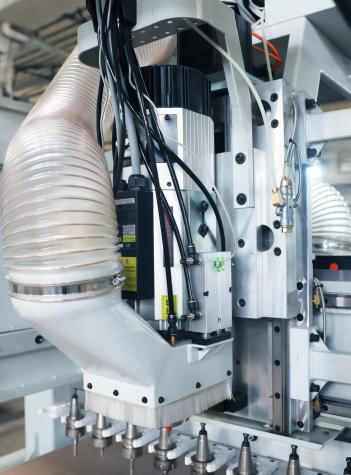

Spindle
- 9kw high precision spindle, ensuring stable Processing.
- Lengthened and thickened Z-axis slide plate， standard dust-free processing, improved dust collection method, button box is placed on the beam.
Tool Magazine
- 12 tools linear type tool magazine, able to cut, drilling, groove, engrave and do other exquisite crafts.
- Automatic tool change according to set program.

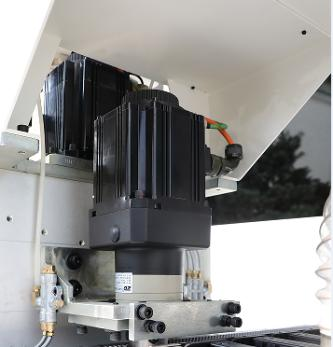

Drive Motor
- High-performance servo motor drive.
- Accurately respond to control signals.
- Ensure cutting accuracy.

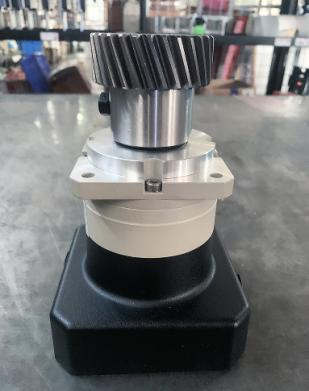

Planetary Reducer
- High precision, high torque.
- Backlash less than 3 arc minutes, accurate positioning.
- Use integral roller bearings.
- The main bearing adopts tapered needle roller bearing to ensure the processing speed and stability of the equipment.

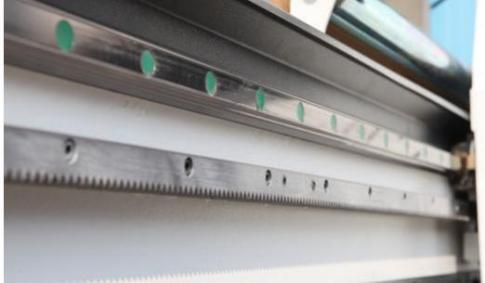

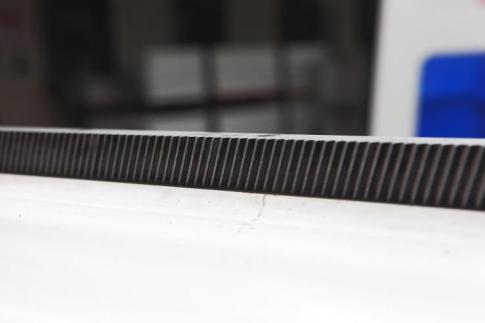

X/Y Axis Transmission
- Precision helical rack.
- Reasonable design leads to smooth flow.
- High strength and rigidity, stable properties.
- Sufficient toughness and smooth operation.

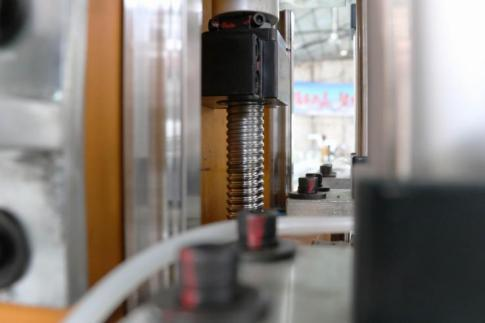

Z Axis Transmission
- High precision ball screw transmission.
- The error is within 0.05~0.1mm.
- The cumulative error is within ±0.1mm.
- Greatly improve the precision of the whole machine.
High Precision Guide Rail
- Using 30# guide rails to ensure equipment accuracy and stability.
- Large specifications, large contact surface, strong load-carrying capacity.
- The guide rail mounting surfaces are all welded with steel strips, increase the bolt confinement depth to increase the load-bearing capacity.

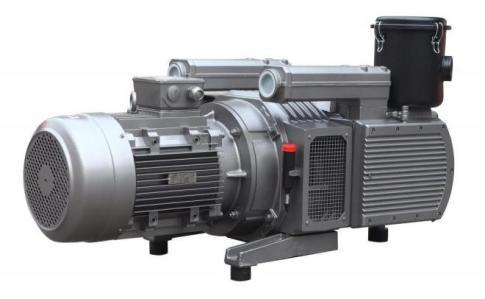

EUROVAC Vacuum Pump
- Dry vacuum pump, longer service life.
- High efficiency, low noise.
- Low temperature rises, smooth operation.
- Strong adsorption capacity.

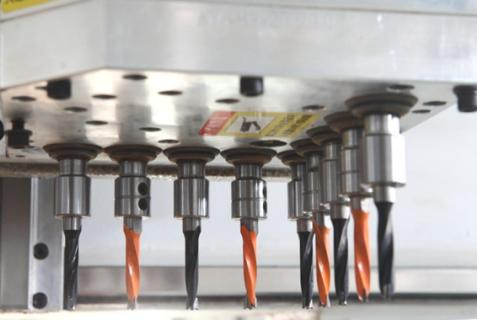

Drilling Head & Pressure Roller
- 9 vertical drill bits.
- Pressure roller can prevent panels from skewing, ensuring processing accuracy.
Customized Working Area
Customize the wokring area according to your request, such as 6*9 ft (1830*2745mm), 5*10ft (1525*3050mm) and so on.
Technical Specifications
| Model | SKG-912M |
| Working Area | 2800×1300mm |
| Max. Moving Speed of X Axis | 60m/min |
| Max. Moving Speed of Y Axis | 60m/min |
| Max. Moving Speed of Z Axis | 20m/min |
| Spindle Quantity | 1 |
| Spindle Power | 9KW |
| Drilling Unit | Option |
| Vacuum Power | 7.5KW |
| Vacuum Power Air Volume | 250m³/h |
| Total Power | 20.5KW |
| Machine Size | 3980×3340×2925mm |
FAQs
What applications and tasks can this CNC router perform?
Our CNC routers are highly versatile and engineered for a wide range of tasks, including heavy-duty cutting, drilling, grooving, high-precision engraving, milling, and complex 3D routing.
What types of products can I manufacture with this machine?
This machine is perfect for producing high-quality cabinetry, custom doors, tables, and both residential and commercial furniture. It is also widely used for fabricating advertising signage, exhibition displays, and intricate decorative panels.
What raw materials can the CNC router process?
It efficiently processes a vast array of materials, including solid hardwoods (like teak), MDF, plywood, PVC, acrylics, HPL, compact laminates, and non-ferrous metals like aluminum.
