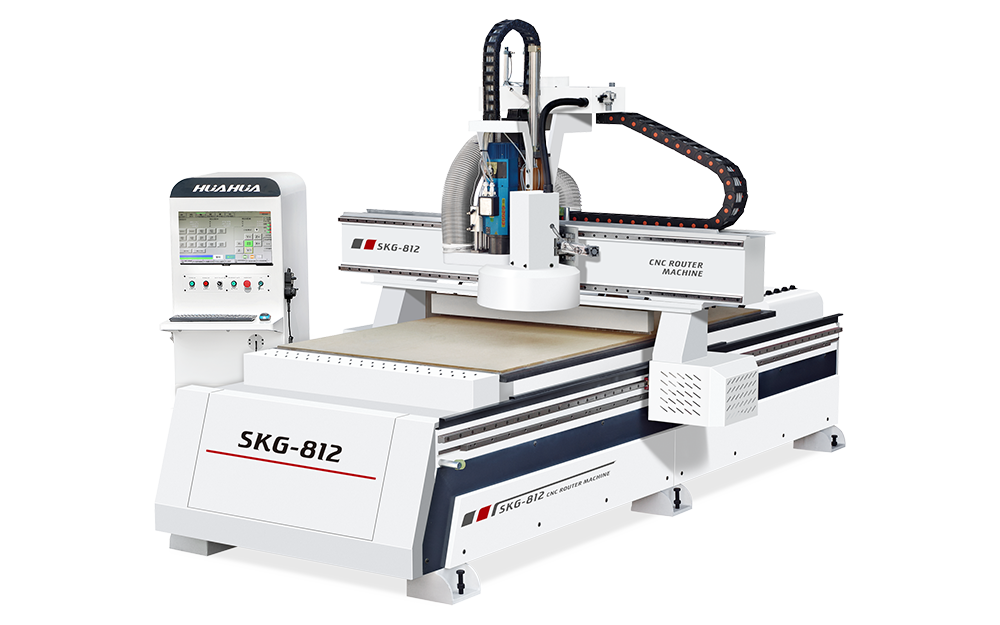

Key Details
- Machine size: 3980*3340*2925mm
- Working area: 2800*1300mm
- Auto tool changing spindle

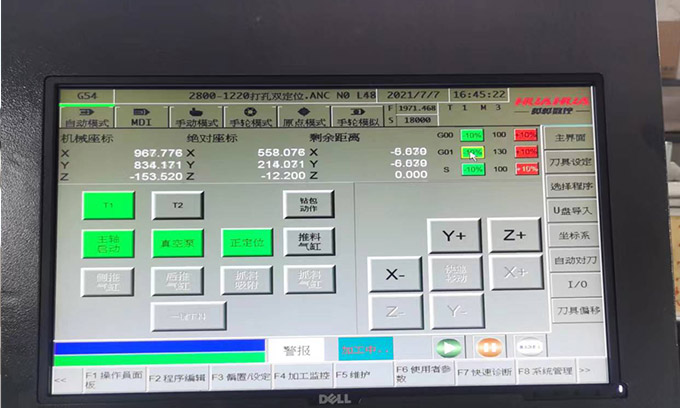

Control System: Taiwan Syntec
- Advanced Interface: User-friendly layout designed for streamlined operation and shorter learning curves.
- High-Speed Processing: Delivers fast system response times and real-time motion control.
- Global Support: Backed by an extensive network of international after-sales service points for reliable, worldwide maintenance.
ATC High-Speed Spindle Router
- High-Output 12kW Spindle: Features an automatic tool changer (ATC) operating at up to 24,000 RPM, delivering heavy-duty torque and rapid processing speeds.
- Heavy-Duty Capabilities: Engineered specifically for intense industrial cutting, deep milling, and high-load routing applications.
- Flawless Edge Finishes: Maintains exceptional stability under heavy stress to guarantee an ultra-smooth, mirror-like surface on all workpieces.

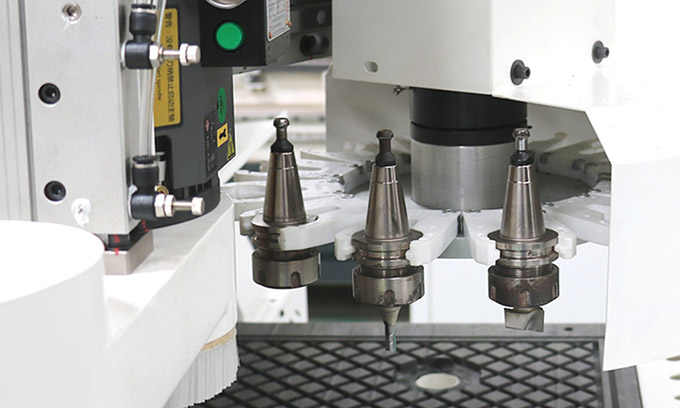

Round Type Tool Changer Magazine
- 12-Tool Capacity: Accommodates up to 12 distinct tools simultaneously, allowing for automated transitions without manual intervention.
- Proximity-Based Selection: Utilizes smart proximity logic to select the nearest available tool, drastically reducing tool-change times and maximizing operational efficiency.
- Optimized for Complex Woodworking: Drastically streamlines intricate cutting, carving, and multi-stage processing workflows on wood and composite materials.

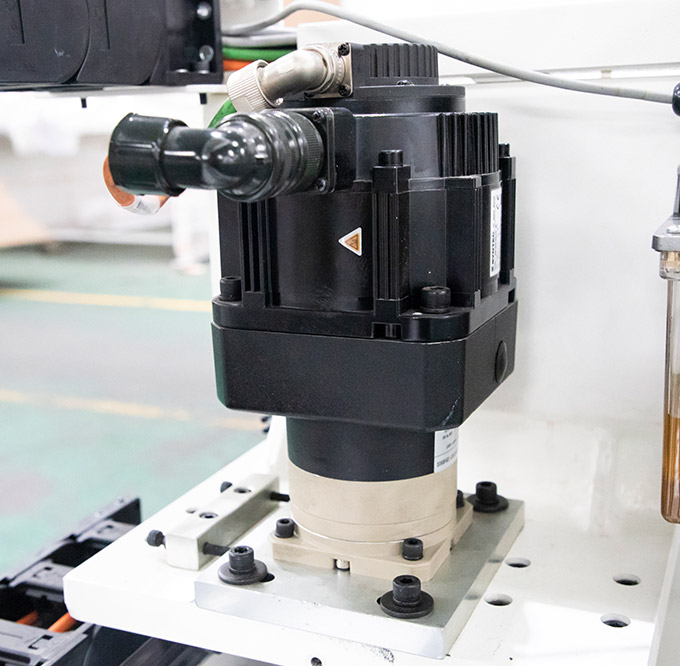

Taiwan Syntec Servo Motor, Driver & Reducer
- Precision Motion Control: Professionally engineered closed-loop system delivering exceptional high resolution and absolute positional accuracy.
- Reliable & Stable Performance: Synchronized motor and driver communication ensures ultra-smooth, highly accurate machine movement even at high speeds.
- Enhanced Operational Safety: Built with industrial-grade components to guarantee the machine runs safely and stably under demanding heavy-duty workloads.

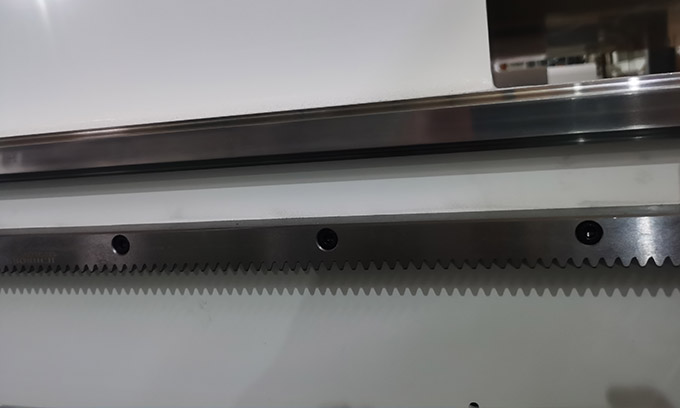

Imported Linear Guide Rails & Rack
- Precision Engineering: Equipped with 30mm precision-ground imported linear guide rails mounted securely to the gantry for maximum rigidity and stability.
- Automated Maintenance: Features an integrated, centralized lubrication system that continuously services the bearing blocks to reduce component wear.
- Ultra-Smooth Motion: Guarantees flawless, low-friction travel for the spindle motor assembly during intense, heavy-duty processing operations.

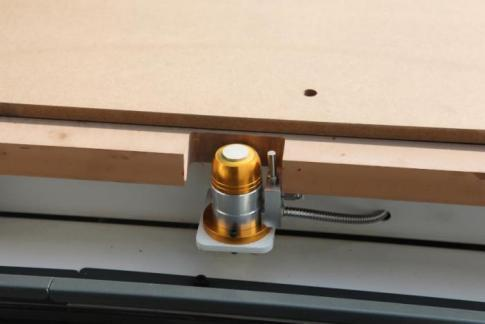

Pneumatic Positioning Pins
- Accurate Panel Alignment: Uses heavy-duty positioning pins to align panels perfectly straight and secure them firmly in place, completely eliminating material shifting.
- Optimized Grid Setup: Equipped with 6 pins in total, strategically configured with 4 pieces along the Y-axis and 2 pieces along the X-axis for complete stability.
- Streamlined Loading: Speeds up material setup and ensures repeatable placement accuracy for multi-panel production runs.
Technical Specifications
| Model | SKG-812 | Spindle power | 12KW |
| Working Area | 1300*2800mm | Drilling Unit | Option |
| Vacuum area | 7 areas | Vacuum power | 7.5KW |
| Max. Moving Speed of X axis | 80m/min | Vacuum power air volume | 250m³/h |
| Max. Moving Speed of Y axis | 80m/min | Total power | 24.25kw |
| Max. Moving Speed of Z axis | 20m/min | Machine size | 4360*3390*2954mm |
| Spindle quantity | 1 | Gross weight | 2300kg |
FAQs
What applications and tasks can this CNC router perform?
Our CNC routers are highly versatile and engineered for a wide range of tasks, including heavy-duty cutting, drilling, grooving, high-precision engraving, milling, and complex 3D routing.
What types of products can I manufacture with this machine?
This machine is perfect for producing high-quality cabinetry, custom doors, tables, and both residential and commercial furniture. It is also widely used for fabricating advertising signage, exhibition displays, and intricate decorative panels.
What raw materials can the CNC router process?
It efficiently processes a vast array of materials, including solid hardwoods (like teak), MDF, plywood, PVC, acrylics, HPL, compact laminates, and non-ferrous metals like aluminum.
