Precision Drilling Heads
Using HUAHUA independently developed CNC drilling heads, Manufacturing in accordance with international standards,After three-coordinate detection, the accuracy is guaranteed.
Drilling bits:
Top: Vertical 9pcs + Horizontal 8pcs
Bottom: Vertical 9pcs
Milling spindle: 3.5kw * 2pcs (1 Top + 1 Bottom)

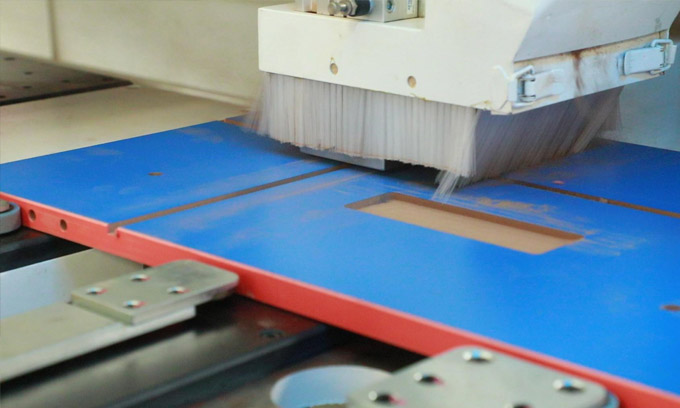

6 sides drilling and 2 sides milling
One time processing can complete panel 6-side drilling & 2-side grooving works.
Six-sided machining, drilling, grooving, milling, to meet the needs of different productions.

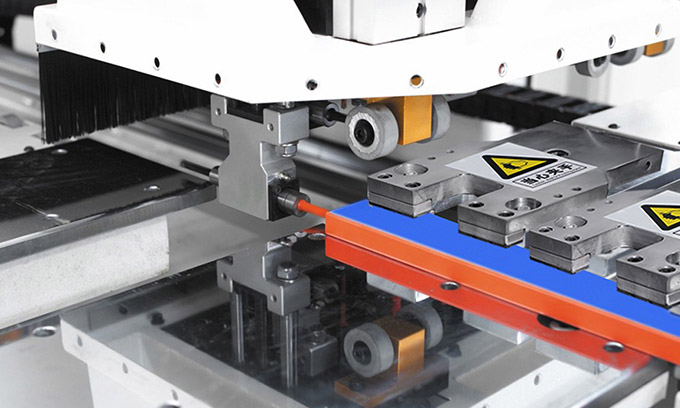

Double Clamp Feeding
Double clamps continuously feeding, automatically control the panel feeding and positioning according to the computer drilling program
Min. process size: 250*50mm;
Max. process size: 2800*1200mm

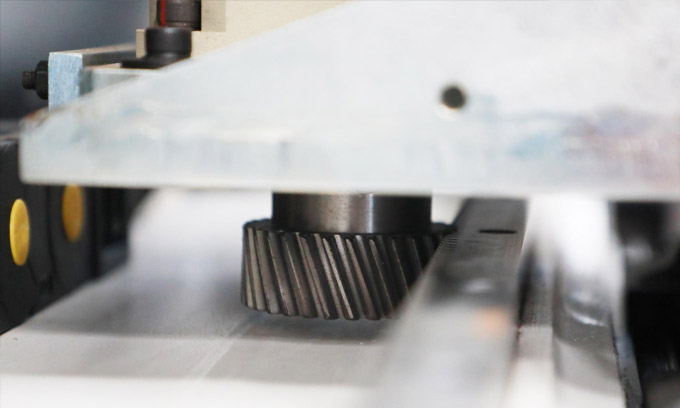

Rack and Pinion Transmission
Multi-point positioning makes it more accurate, and the processing accuracy of the six-sided drilling is also higher. The error can be controlled within ± 0.1mm.

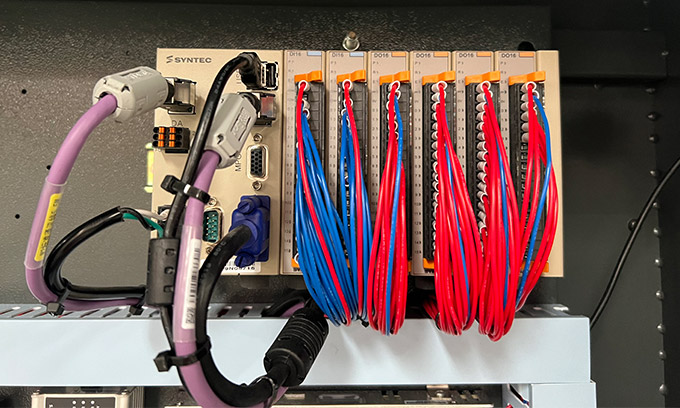

Taiwan Syntec Control System
1.Taiwan Syntec absolute value control, no need for homing, machine can be used immediately once power on.
2. High performance and stability during long service life;
3. Syntec after-sales service branches all over the world.

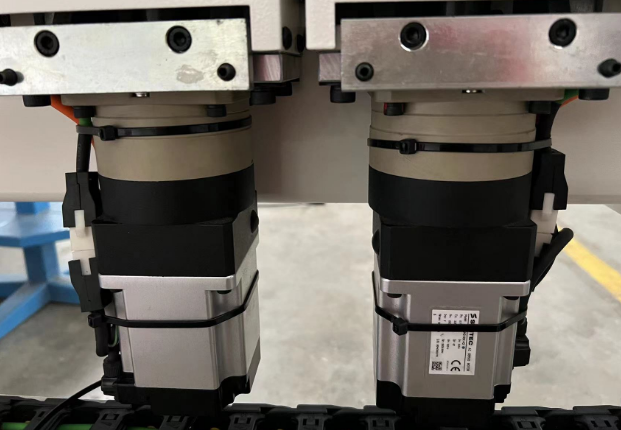

Taiwan Syntec Servo Motor
1.Taiwan Syntec servo motor control clamp, no need for homing, machine can be used immediately once power on.
2.The clamp moving speed can reach up to 130m/min, fast positioning and drilling

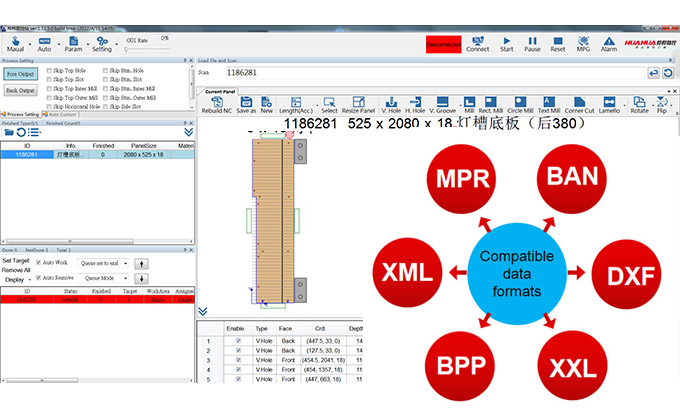

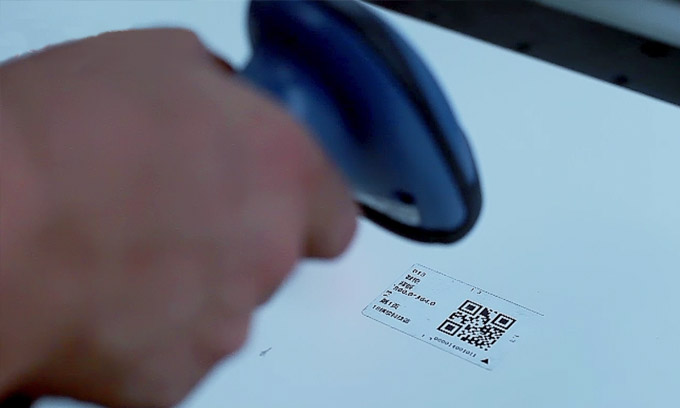

Scan QR Code Loading Processing Files
Support barcode / QR code, scan and automatically load processing graphics files like MPR, DXF, BAN, XML etc.,and automatically generate NC program processing, Convenient and efficient opertion
Compatible with Multiple Data Formats
The HUAHUA CAM operation software shows the users with visual interface, friendly and succinct form, definite meaning of parameter, easy operation
Convenient and efficient opertion

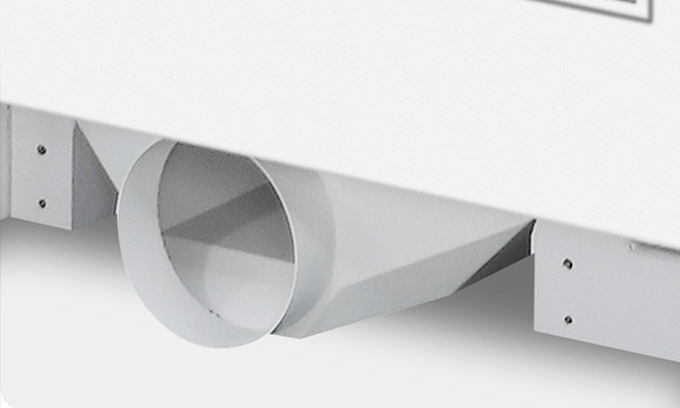

Dust Collection
Bottom dust collection device collect the scraps of the panel to ensure smooth processing.

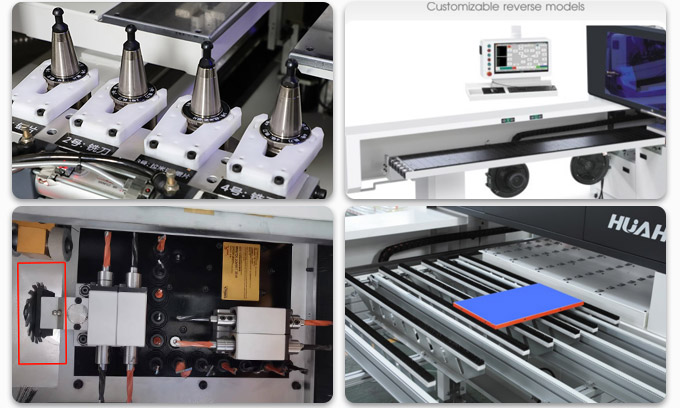

Optional
SKH-612N optional side slot and surface slotting, ATC tool changer and match with side discharge lifting unloading table A variety of unloading options to facilitate automatic connection.
For more options, please consult our sales.
Technical Specifications
| Min. Workpiece Width | 50mm | Max. Workpiece Width | 1200mm |
| Min. Workpiece Length | 250mm | Max. Workpiece Length | 4200mm |
| Min. Workpiece Thickness | 10mm | Max. Workpiece Thickness | 48mm |
| X Axis Stroke / Speed | 4610mm / 130m/min | Y Axis Stroke / Speed | 1660mm / 85m/min |
| Z Axis Stroke / Speed | 130mm / 30m/min | U Axis Stroke / Speed | 4610mm / 130m/min |
| V Axis Stroke / Speed | 1360mm / 80m/min | W Axis Stroke / Speed | 110mm / 30m/min |
| A Axis Stroke / Speed | 1210mm / 30m/min | Working Table Height | 850mm |
| Top Vertical Drilling Bits | 9 pcs | Top Horizontal Drilling Bits | 4 (X) + 4 (Y) |
| Top Drill Motor | 2.2kW / 2800rpm | Top Router Motor | 3.5kW / 18,000rpm |
| Bottom Vertical Drilling Bits | 9 pcs | Bottom Horizontal Drilling Bits | 0 |
| Bottom Drill Motor | 2.2kW / 2800rpm | Bottom Router Motor | 3.5kW / 18,000rpm |
| Total Power | 18.02kW | Voltage | 220V / 380V / 415V (Optional) |
| Vacuum Flow | 7200m³/h | Working Air Pressure | 0.7–0.8MPa |
| Weight | 2440kg | Overall Dimensions | 5470 × 2625 × 2200mm |
FAQs
What is the Six Sides CNC Drilling Machine for Wood?
Six Sides CNC Drilling Machine for wood is a high-end CNC equipment for drilling and grooving plate furniture production. Six-sided CNC drilling can complete six-sided processing, grooving and milling simultaneously. Easy to operate, flexible to use, and free from manual intervention. The hinge hole can be processed in the linkage, and the thickness of the plate can be mirrored on both sides within a specific range.
What is a Multi Boring Machine used for?
A multi CNC boring machine for wood is primarily used to create multiple holes in a single setup, significantly improving efficiency in production. This machine is ideal for applications such as cabinet making, furniture assembly, and other woodworking tasks that require precision hole placement.
2026 Best Automatic Six Sided CNC Drilling Machine for Sale
HUAHUA SKH-612NS is our best-selling wood six side CNC drilling machine.
