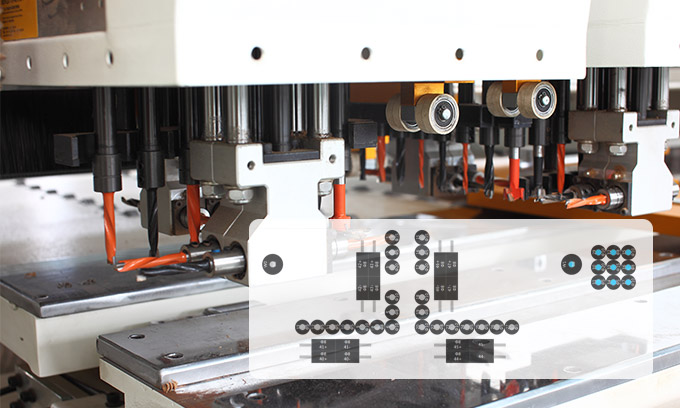

Double Precision Drilling Heads
Using HUAHUA independently developed CNC drilling heads, Manufacturing in accordance with international standards,After three-coordinate detection, the accuracy is guaranteed.
One time processing can complete panel 6-side drilling & 2-side grooving works.

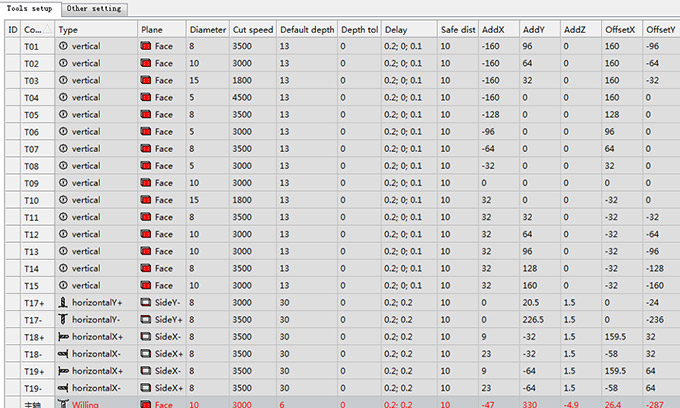

Drilling bits:
Top: (Vertical 12 + Horizontal 8)*2 groups
Bottom: Vertical 9pcs
Milling spindle: 3.5kw * 2pcs (1 Top + 1 Bottom)

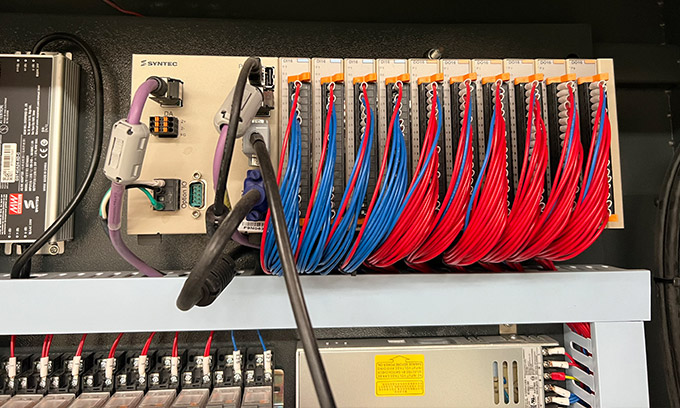

Taiwan Syntec Control System
Taiwan Syntec control system + Taiwan Syntec servo motor
1.Taiwan Syntec absolute value control, no need for homing, machine can be used immediately once power on.
2. High performance and stability during long service life;
Taiwan Syntec Control System
Taiwan Syntec control system + Taiwan Syntec servo motor
1. Taiwan Syntec absolute value control, no need for homing, machine can be used immediately once power on.
2. High performance and stability during long service life;
3. Syntec after-sales service branches all over the world.

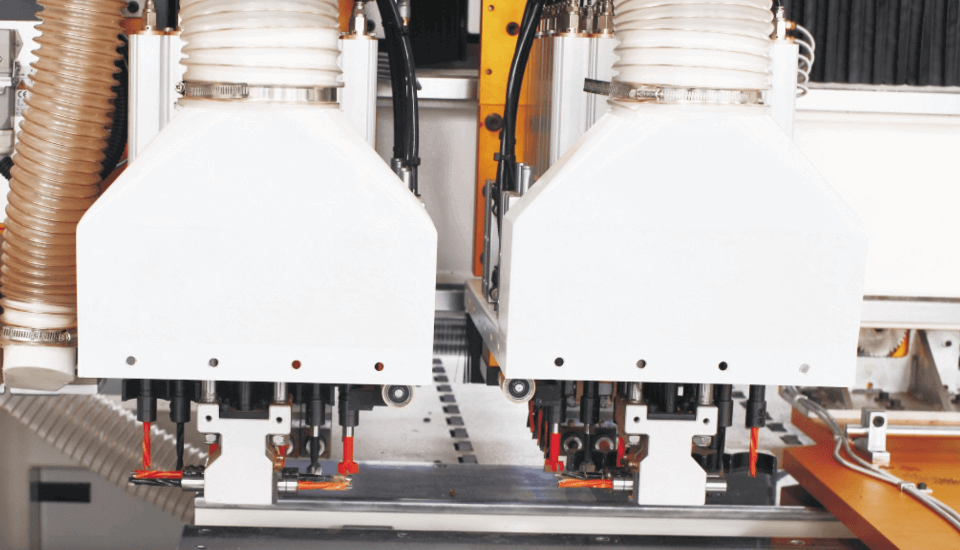

Double Drilling Heads Simultaneous Processing
When two holes distance more than 85mm, two drilling heads simultaneous processing
Suit for Bathroom cabinet & kitchen cabinet production

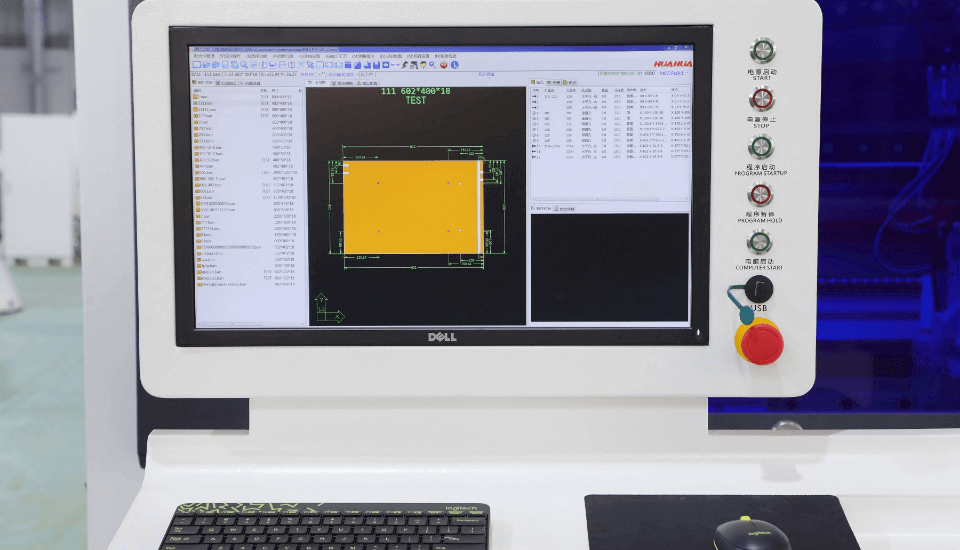

Industrial PC + 21-inch Color Screen
Using Industrial PC + 21-inch color screen to control the display,
Machine can connect internet or wifi, more easier for transfer processing data and remote control service
Scan QR Code Loading Processing Files
Support barcode / QR code, scan and automatically load processing graphics files like MPR, DXF, BAN, XML etc.,and automatically generate NC program processing.

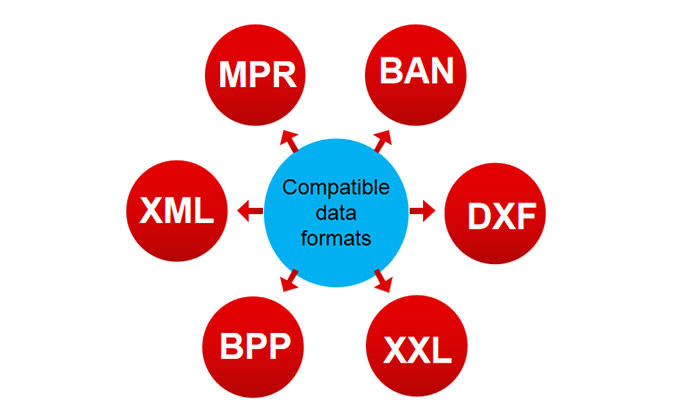

Compatible with Multiple Data Formats
Convenient and efficient opertion
Data Analysis System
Bring your own database;
Record processing data.
Optional

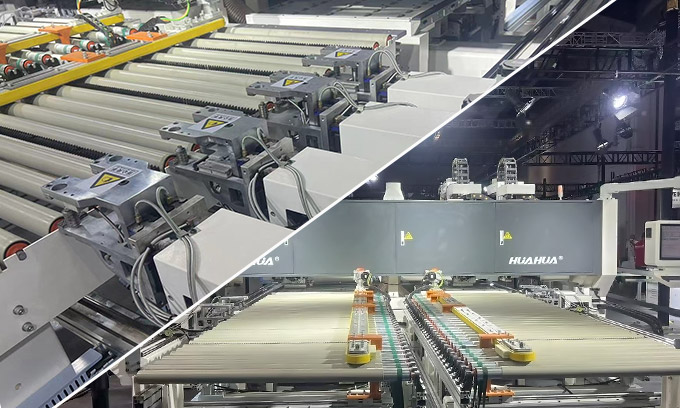

SKH-612HS can be equipped with front and rear rollers to become a automatic line, and can also be equipped with 4 clamps. For more options, please consult our salesman.
Technical Specifications
| Min. Workpiece Width | 50mm | Max. Workpiece Width | 1200mm |
| Min. Workpiece Length | 250mm | Max. Workpiece Length | 5000mm |
| Min. Workpiece Thickness | 10mm | Max. Workpiece Thickness | 48mm |
| X Axis Stroke / Speed | 5410mm / 130m/min | Y Axis Stroke / Speed | 1630mm / 85m/min |
| Z Axis Stroke / Speed | 140mm / 30m/min | U Axis Stroke / Speed | 5410mm / 130m/min |
| V Axis Stroke / Speed | 1360mm / 80m/min | W Axis Stroke / Speed | 110mm / 30m/min |
| A Axis Stroke / Speed | 1210mm / 30m/min | Y2 Axis Stroke / Speed | 1690mm / 85m/min |
| Z2 Axis Stroke / Speed | 130mm / 30m/min | Working Table Height | 960mm |
| Top Vertical Drilling Bits | 24 pcs (12 × 2) | Top Horizontal Drilling Bits | 16 pcs (8 × 2) |
| Top Drill Motor | 2 × 2.2kW / 2800rpm | Top Router Motor | 2 × 3.5kW / 18,000rpm |
| Bottom Vertical Drilling Bits | 9 pcs | Bottom Horizontal Drilling Bits | 0 |
| Bottom Drill Motor | 2.2kW / 2800rpm | Bottom Router Motor | 3.5kW / 18,000rpm |
| Total Power | 24.1kW | Voltage | 220V / 380V / 415V (Optional) |
| Vacuum Flow | 9400m³/h | Working Air Pressure | 0.7–0.8MPa |
| Weight | 3850kg | Overall Dimensions | 6480 × 2840 × 2200mm |
FAQs
What is the Six Sides CNC Drilling Machine for Wood?
Six Sides CNC Drilling Machine for wood is a high-end CNC equipment for drilling and grooving plate furniture production. Six-sided CNC drilling can complete six-sided processing, grooving and milling simultaneously. Easy to operate, flexible to use, and free from manual intervention. The hinge hole can be processed in the linkage, and the thickness of the plate can be mirrored on both sides within a specific range.
What is a Multi Boring Machine used for?
A multi CNC boring machine for wood is primarily used to create multiple holes in a single setup, significantly improving efficiency in production. This machine is ideal for applications such as cabinet making, furniture assembly, and other woodworking tasks that require precision hole placement.
2026 Best Automatic Six Sided CNC Drilling Machine for Sale
HUAHUA SKH-612NS is our best-selling wood six side CNC drilling machine.
