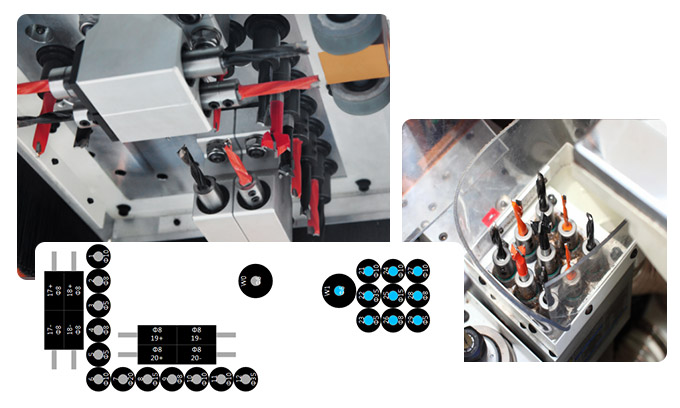

Precision Drilling Heads
Using HUAHUA independently developed CNC drilling heads, Manufacturing in accordance with international standards,After three-coordinate detection, the accuracy is guaranteed.
One time processing can complete panel 6-side drilling & 2-side grooving works.
Drilling bits:
Top: Vertical 12pcs + Horizontal 8pcs
Bottom: Vertical 9pcs
Milling spindle: 3.5kw * 2pcs (1 Top + 1 Bottom)

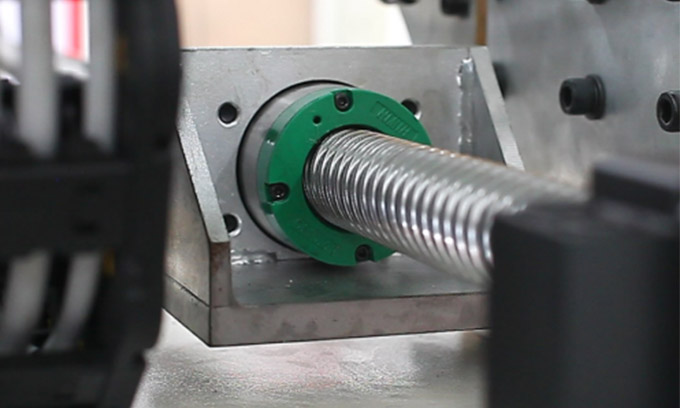

Taiwan HIWIN Ball Screw Drive
Using ball screw drive, the screw drive error is within 0.05-0.1MM, the cumulative error is within ±0.2MM, and the service life of the whole machine is improved.

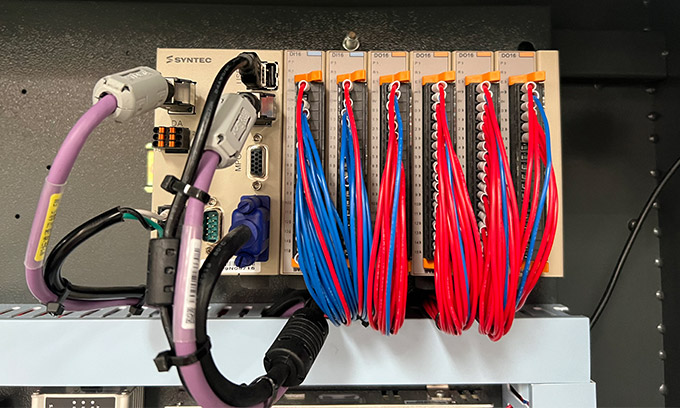

Taiwan Syntec Control System
Taiwan Syntec control system + Taiwan Syntec servo motor
1. Taiwan Syntec absolute value control, no need for homing, machine can be used immediately once power on.
2. High performance and stability during long service life;
3. Syntec after-sales service branches all over the world.

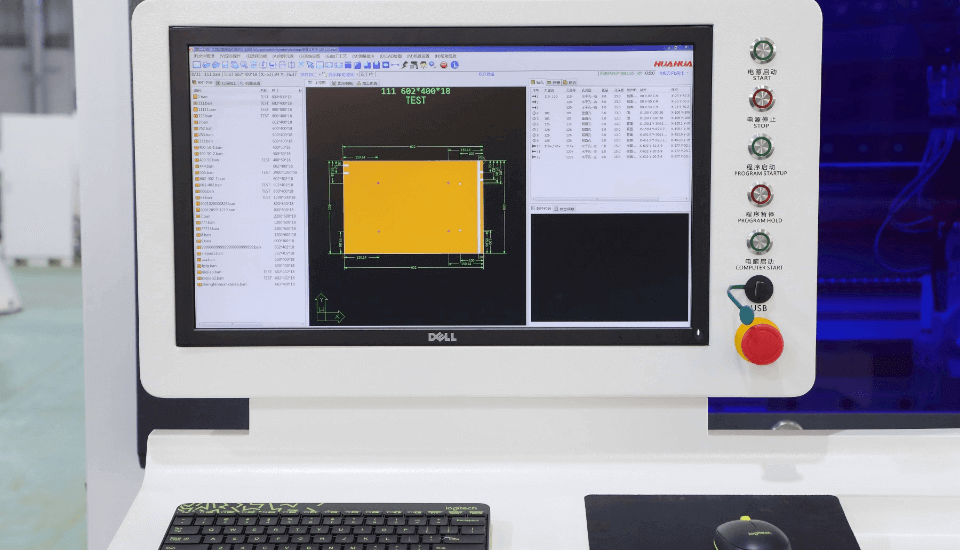

Industrial PC + 21-inch Color Screen
Using Industrial PC + 21-inch color screen to control the display.
Machine can connect internet or wifi, more easier for transfer processing data and remote control service

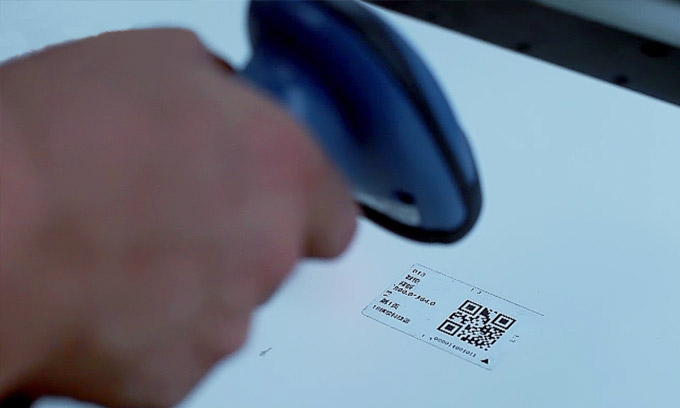

Scan QR Code Loading Processing Files
Support barcode / QR code, scan and automatically load processing graphics files like MPR, DXF, BAN, XML etc.,and automatically generate NC program processing.

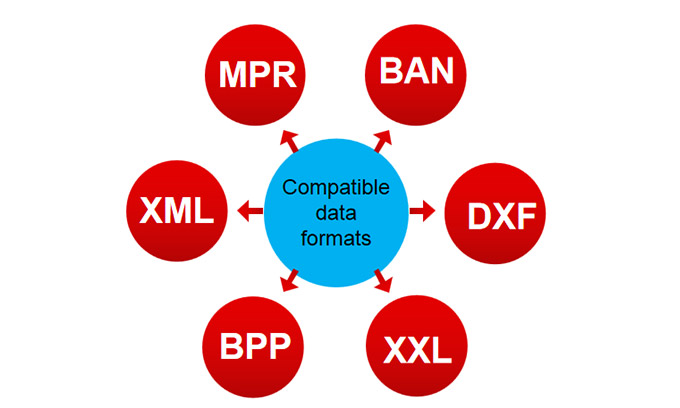

Compatible with Multiple Data Formats
Convenient and efficient opertion

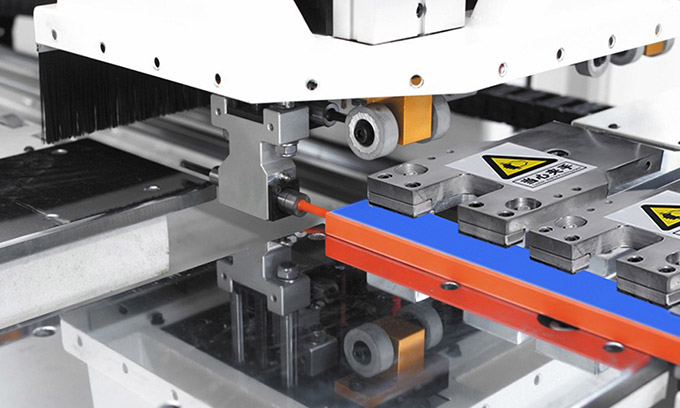

Double clamps
Can drilling min. panel size: 250*50mm
Max. processing size: 5000*1200mm
Meet different panel sizes processing demands

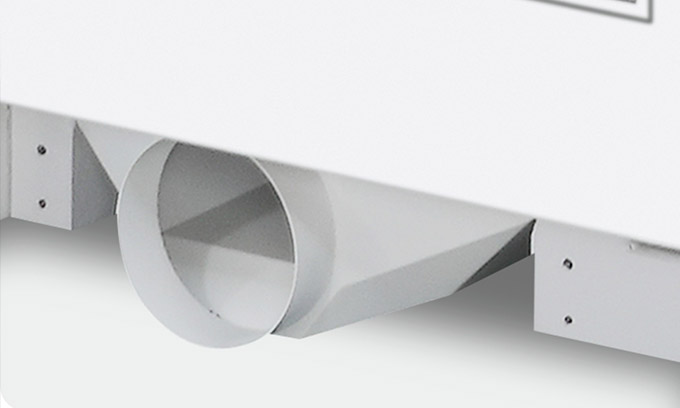

Bottom Dust Collection Device
Bottom dust collection device collect the scraps of the panel to ensure smooth processing.

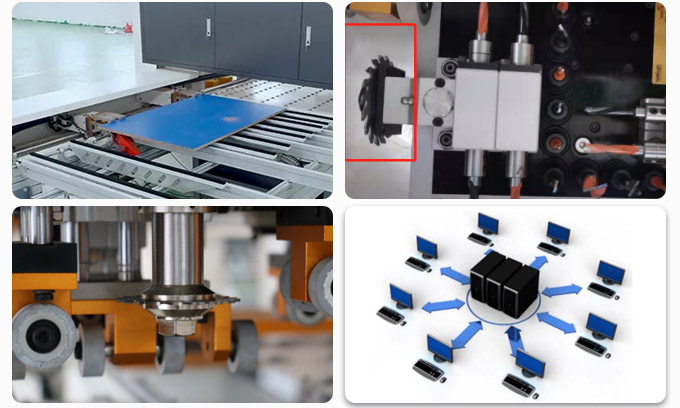

Optional
SKH-612H optional side slot, HHM software, flexible discharge or automatic loading and unloading rollers, saw slotting saw balde etc., for more details please contact with our sales.
Technical Specifications
| Min. Workpiece Width | 50mm | Max. Workpiece Width | 1200mm |
| Min. Workpiece Length | 250mm | Max. Workpiece Length | 5000mm |
| Min. Workpiece Thickness | 10mm | Max. Workpiece Thickness | 48mm |
| X Axis Stroke / Speed | 5410mm / 130m/min | Y Axis Stroke / Speed | 1680mm / 85m/min |
| Z Axis Stroke / Speed | 140mm / 30m/min | U Axis Stroke / Speed | 5410mm / 130m/min |
| V Axis Stroke / Speed | 1340mm / 80m/min | W Axis Stroke / Speed | 110mm / 30m/min |
| A Axis Stroke / Speed | 1215mm / 30m/min | Working Table Height | 960mm |
| Top Vertical Drilling Bits | 12 pcs | Top Horizontal Drilling Bits | 4 (X) + 4 (Y) |
| Top Drill Motor | 2.2kW / 2800rpm | Top Router Motor | 3.5kW / 18,000rpm |
| Bottom Vertical Drilling Bits | 9 pcs | Bottom Horizontal Drilling Bits | 0 |
| Bottom Drill Motor | 2.2kW / 2800rpm | Bottom Router Motor | 3.5kW / 18,000rpm |
| Total Power | 18.9kW | Voltage | 220V / 380V / 415V (Optional) |
| Vacuum Flow | 7200m³/h | Working Air Pressure | 0.7–0.8MPa |
| Weight | 3500kg | Overall Dimensions | 6480 × 2840 × 2200mm |
FAQs
What is the Six Sides CNC Drilling Machine for Wood?
Six Sides CNC Drilling Machine for wood is a high-end CNC equipment for drilling and grooving plate furniture production. Six-sided CNC drilling can complete six-sided processing, grooving and milling simultaneously. Easy to operate, flexible to use, and free from manual intervention. The hinge hole can be processed in the linkage, and the thickness of the plate can be mirrored on both sides within a specific range.
What is a Multi Boring Machine used for?
A multi CNC boring machine for wood is primarily used to create multiple holes in a single setup, significantly improving efficiency in production. This machine is ideal for applications such as cabinet making, furniture assembly, and other woodworking tasks that require precision hole placement.
2026 Best Automatic Six Sided CNC Drilling Machine for Sale
HUAHUA SKH-612NS is our best-selling wood six side CNC drilling machine.
